SAP define a Partner System for IDoc Inbound Processing

When trying to generate IDocs, getting the information message “No partner exists with the name ”, type ”” (Fig 1), means that a “Partner System” has to be set up.

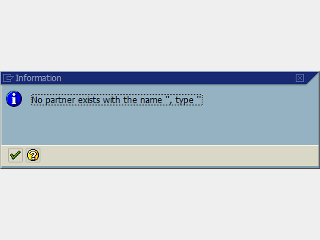

SAP define a Partner System for IDoc Inbound Processing : Fig 1 : SAP information message error No partner exists with the name, type
Fig 1 : SAP information message error No partner exists with the name, type

Defining a “Partner System” will allow to select IDocs for processing by “Partner System”, which can be set by project, in order to allow different teams to work on different IDocs at the same time for example.

To define a “Partner System”, go to the LSMW menu (Fig 2), and go in the “IDoc Inbound Processing” option from “Settings” menu (Fig 3), or use keyboard shortcut Ctrl+Shift+F1.

SAP define a Partner System for IDoc Inbound Processing : Fig 2 : SAP LSMW main menu
Fig 2 : SAP LSMW main menu
SAP define a Partner System for IDoc Inbound Processing : Fig 3 : SAP LSMW access to menu IDoc Inbound Processing
Fig 3 : SAP LSMW access to menu IDoc Inbound Processing

Once in the “IDoc Inbound Processing: Preparatory Measures” screen (Fig 4), just fill in a “File port”, a “Partn.Type”, and a “Partner No.” (Fig 5), at least.

SAP define a Partner System for IDoc Inbound Processing : Fig 4 : SAP empty screen IDoc Inbound Processing: Preparatory Measures
Fig 4 : SAP empty screen IDoc Inbound Processing: Preparatory Measures
SAP define a Partner System for IDoc Inbound Processing : Fig 5 : SAP filled screen IDoc Inbound Processing: Preparatory Measures
Fig 5 : SAP filled screen IDoc Inbound Processing: Preparatory Measures

It is possible to lookup (or define new) ports and partners by clicking on the appropriate button, or by going to transaction WE21 to define a “File port”, and WE20 to define a new “Partner No.”. Most likely no new “Partn.Type” has to be defined, as they are standard.

Click afterwards on “Activate IDoc Inbound Processing” (Fig 5) in order to save entered values, and then generate IDocs.

When processing them, using for example BD87, do not forget to enter the right “Partner System” (Fig 6), LSMW in my example – otherwise it would select all IDocs created on the system.

SAP define a Partner System for IDoc Inbound Processing : Fig 6 : SAP BD87 IDocs Selection screen
Fig 6 : SAP BD87 IDocs Selection screen
